Automatic Double Head Auger Powder Filling Machine South Africa
Automatic Double Head Auger Powder Filling Machine Details
Engineered for High-Speed Precision Filling

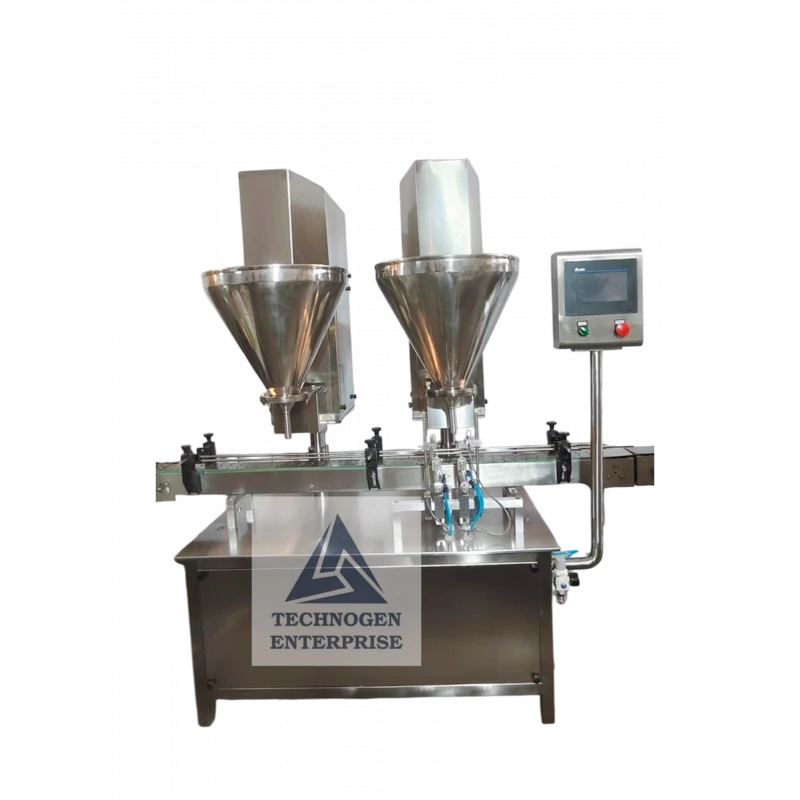

Technogen Enterprise introduces the Automatic Double Head Auger Powder Filling Machine (Model TGAPF-60) — a cutting-edge, servo-driven solution for high-volume, accurate powder filling. Engineered for manufacturers looking to optimize output without sacrificing consistency, this dual-head auger filler delivers up to 60 bottles per minute with outstanding reliability.
Whether you're packaging pharmaceutical powders, nutraceuticals, spice blends, or fine industrial powders, this machine delivers maximum throughput with minimal downtime. Designed for continuous production lines, it is perfect for large-scale operations in South Africa’s leading industrial hubs — from Johannesburg and Cape Town to Durban, Port Elizabeth, and Pretoria.
Key Features & Benefits
High-Speed Dual Auger Design: Two independent servo-driven auger heads for simultaneous bottle filling
Filling Range: 5g to 1000g: Ideal for both micro-dosing and bulk powder packaging
Servo Motor Control: Precise rotation ensures consistent volumetric dosing
PLC + HMI Controlled: User-friendly touch interface with programmable settings
No Bottle – No Fill Mechanism: Prevents powder waste and ensures accurate container detection
Star Wheel Indexing: Eliminates air-based movement, reducing utility costs and downtime
Drip Control Mechanism: Ensures a clean filling environment with zero powder leakage
Low Noise Operation (<70 dB): Smooth and quiet performance suitable for GMP zones
Maintenance-Free Design: Rugged body with reduced moving parts for durability
Quick Changeover: Few change parts required, minimal setup time across batches
Built for Demanding South African Industries
This CGMP-compliant, compact, and energy-efficient machine serves various sectors:
| Industry | Applications |
|---|---|
| Pharmaceutical | API powders, nutraceutical blends |
| Food & Beverage | Spices, protein powders, health mixes |
| Chemical | Industrial powders, agro granules |
| Cosmetic | Talcum, mineral powders |
| Agrochemicals | Micronutrients, soluble fertilizers |
Technical Specifications
| Feature | Description |
|---|---|
| Model | TGAPF-60 |
| Automation Grade | Fully Automatic |
| Machine Direction | Left to Right |
| No. of Filling Heads | 2 |
| No. of Hoppers | 2 (18L each) |
| Filling Range | 5g to 1000g |
| Filling Accuracy | ±2% (subject to powder type) |
| Bottle Diameter | 25mm to 80mm |
| Production Speed | 50–60 BPM for 5g–10g fills |
| Power Requirement | 440V AC, 3 Phase, 50 Hz |
| Power Consumption | 1 KW |
| Speed Variation | Via Variable Frequency Drive |
| Control System | PLC + HMI |
| Noise Level | <70 dB |
| Machine Dimensions (L×W×H) | 2130 mm × 850 mm × 1600 mm |
| Net Weight | 375 kg |
| Gross Weight | 600 kg |
| Country of Origin | India |
| Warranty | 1 Year from Dispatch Date |
Optional Features for Customization
Customize your machine to meet industry-specific standards and increase efficiency:
? Dust Extraction System: Keeps the working environment clean and safe
? Acrylic Safety Cabinet: Transparent enclosure with safety interlocks
? Non-Free Flow Powder Feeder : Enables handling of sticky or hygroscopic powders
? Audit Trail Enabled PLC-HMI: Ideal for compliance with 21 CFR Part 11 in pharmaceutical sectors
Working Principle
This servo-based dual auger filler works on Auger-metric volumetric principle:
Two filling heads operate in tandem for higher output.
Servo-controlled augers rotate with precision to dispense exact quantities.
Bottles move via conveyor and are held by star wheel indexing.
Sensor-based No Bottle – No Fill system prevents unnecessary powder loss.
PLC-controlled cycle ensures seamless synchronization and data control.
Why Choose Technogen Enterprise?
With a proven track record as a leading global exporter and OEM, Technogen Enterprise offers:
High-speed automation for increased productivity
CGMP-compliant machines
South Africa-ready support for Johannesburg, Cape Town, Durban, and beyond
Affordable spare parts and excellent service backup
Customization per your packaging needs
Contact Us for a Quote or Demo
Boost your production line with our dual head automatic auger powder filling machine. Contact us for:
Price quotation
Technical brochures
Video demo or live trial
Export documentation for South Africa
