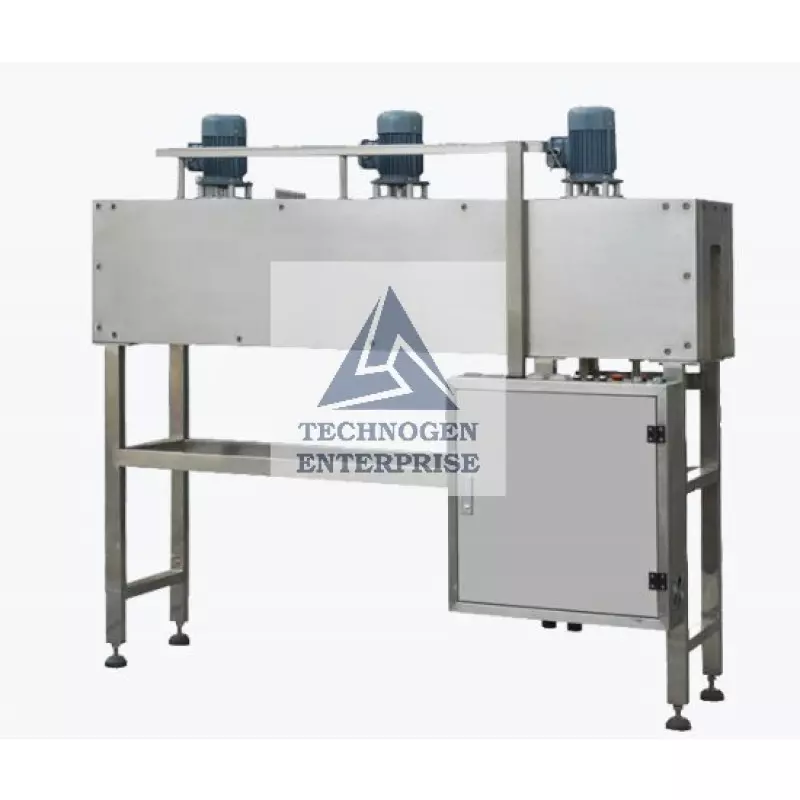

Automatic Electric Heat Shrink Tunnel Machine Manufacturer- South Africa
Automatic Electric Heat Shrink Tunnel Machine Details
Revolutionizing Shrink Label Packaging for South Africa's Industries
South Africa’s dynamic packaging industry — spanning from Cape Town’s FMCG exporters to Johannesburg’s pharmaceutical giants — demands equipment that is fast, efficient, and reliable. Technogen Enterprise proudly presents its Automatic Electric Heat Shrink Tunnel Machine, Model TGEHT-100, a cutting-edge shrink sleeve solution for industrial-grade operations.
Designed in Ahmedabad, India, and now available across South Africa, this machine brings precision engineering, CGMP-compliant design, and robust stainless-steel construction into one smart packaging solution.
What Is an Electric Heat Shrink Tunnel Machine?
An electric heat shrink tunnel machine is a packaging system that shrinks a sleeve label tightly around the body of a container — using controlled heat. The process ensures:
A seamless label finish
High visual appeal for branding
Secure tamper-evident packaging
Extended product protection
The TGEHT-100 model by Technogen Enterprise utilizes forced convection heating, powered by pin heaters and blowers, to shrink labels made of PVC, PP, PETG, or OPS films onto round plastic bottles.
Tailored for South African Markets & Applications
Whether you’re labeling bottles of fruit juice in Durban, pharmaceutical syrups in Pretoria, or detergents in Port Elizabeth, this shrink tunnel is built for you.
Key industries served:
Beverage & Bottled Water – PET bottle labeling
Pharmaceuticals – Tamper-evident shrink sleeves
Personal Care & Cosmetics – High-quality finish for shampoos, creams
FMCG Products – Labeling of retail plastic containers
Chemical & Agrochemical – Protection from spillage and counterfeiting
With adjustable temperature settings and support for a wide range of container sizes, the TGEHT-100 adapts to South Africa’s diverse product range.
Why Choose Technogen’s Shrink Tunnel?
Technogen’s shrink tunnel machines are globally exported, now tailored for African industries. They offer:
Advanced thermal control
Twin blower design for uniform heating
Energy-efficient pin heater setup
Low maintenance & long operating life
Compatibility with multiple sleeve materials
Up to 100 bottles per minute throughput
Machine Design and How It Works
The TGEHT-100 Automatic Electric Heat Shrink Tunnel is designed for inline operations and follows this workflow:
Manual Sleeve Placement:
Operators manually place a PVC or PETG sleeve over the container.Automated Conveyor Feed:
Containers are loaded onto an AISI 304 stainless steel slat conveyor that moves them into the heating tunnel. Conveyor speed is adjustable via a panel control.Entry into Heat Tunnel:
The container enters the shrink tunnel, which is equipped with 12 internal custom heaters and 2 powerful blowers for forced convection heating.Uniform Heat Distribution:
The blowers circulate superheated air evenly, ensuring that the shrink label conforms tightly and uniformly to the bottle surface.Exit and Collection:
The perfectly shrink-labeled container exits the tunnel, ready for final packaging.
Salient Features of TGEHT-100
| Feature | Description |
|---|---|
| ✅ CGMP-Compliant Design | Ensures hygiene and regulatory conformity for pharmaceutical & food industries |
| ✅ Forced Convection Heating | Achieves fast and uniform shrinkage across entire label surface |
| ✅ Multi-Film Compatibility | Works with PVC, PP, PETG, and OPS sleeve labels |
| ✅ Superior Heating Technology | Two external blowers + 12 high-performance internal heaters |
| ✅ Digital Temperature Control | Adjustable up to 250°C for precise operation |
| ✅ Manual Sleeve Loading | Flexible use in semi-automatic operations |
| ✅ 304-Grade Stainless Steel Conveyor | Rust-proof, durable, and easy to clean |
| ✅ Height Adjustable Conveyor | Adjustable up to 970 mm to fit diverse container sizes |
| ✅ Modular and Compact Design | Easy to integrate into existing packaging lines |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TGEHT-100 |
| Speed | Up to 100 bottles/min (depending on size) |
| Direction of Flow | Left to Right |
| Container Type | Round Plastic Bottles |
| Tunnel Temperature | Adjustable up to 250°C |
| Heaters | 12 tunnel heaters + 2 pin heaters on conveyor |
| Number of Blowers | 2 (forced convection) |
| Tunnel Dimensions | 2500 mm (L) × 400 mm (W) × 450 mm (H) |
| Conveyor Dimensions | 3660 mm (L) × 200 mm (W) × 970 mm (H) |
| Bottle Diameter | 100 mm to 190 mm max |
| Bottle Height | 110 mm to 250 mm max |
| Construction Material | AISI 304 Stainless Steel |
Versatility Across Shrink Films
The TGEHT-100 supports a variety of label shrink films, making it ideal for:
PVC – Popular for food and household items
PETG – Clear, glossy labels for beverages and cosmetics
PP (Polypropylene) – Durable, water-resistant films
OPS – Eco-friendlier shrink material
This flexibility helps you stay agile in a fast-evolving packaging market, whether you serve local stores or global exports.
Perfect Fit for South African Packaging Operations
From warehouse-based exporters in Cape Town to pharma plants in Johannesburg, Technogen’s heat shrink tunnel is already helping clients:
Improve line speed
Reduce shrink label defects
Lower operational costs
Improve packaging aesthetics
South Africa’s growing bottled goods market needs automation solutions that don’t compromise quality or efficiency — exactly what the TGEHT-100 delivers.
?️ Installation, Training & After-Sales Support
Technogen offers complete support for clients in South Africa:
Fast delivery of machines and spare parts
Remote video support and setup guidance
Operation & maintenance manual included
Virtual training for your operators
Optional integration assistance via local agents
You can be up and running within 24–48 hours of installation.
Benefits at a Glance
Fast ROI – Low maintenance and energy efficient
Reliable shrinking every cycle – zero label bubbles or misalignment
Supports South African labeling standards
Adapts to various bottle and label sizes
Compact, durable, stainless-steel build
Ideal for semi-automatic or fully-automated packaging lines
Get a Quote or Live Demo
If you're a South African packaging business looking for high-performance shrink sleeve solutions, the TGEHT-100 by Technogen Enterprise is your trusted investment.
Serving All Major South African Cities
Johannesburg – Pharma, chemical, FMCG
Cape Town – Beverage, food processing, exports
Durban – Logistics, agrochemicals, personal care
Pretoria, East London, Port Elizabeth – Manufacturing and bottling industries
Contact Technogen Enterprise Today
Get in touch for:
Customized quote
Virtual machine demonstration
South Africa-specific documentation
Installation & training support
