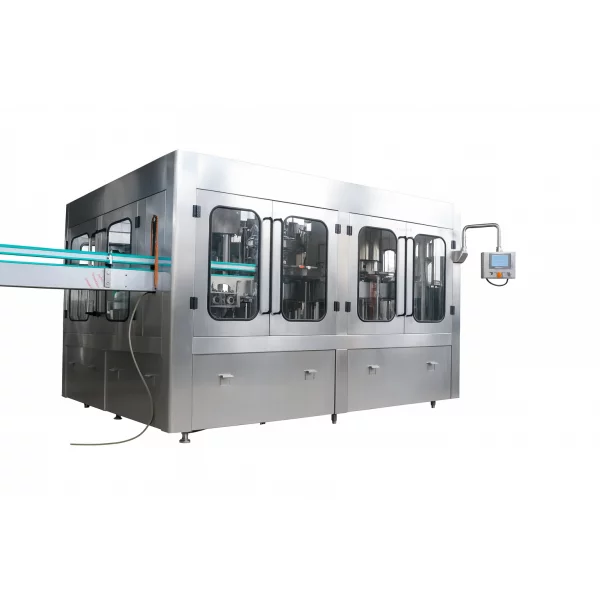

Automatic Plastic Bottle RFC Isobaric Carbonated Beverage Filling Machine – Ideal For South African Beverage Manufacturers

Technogen Enterprise, a renowned manufacturer, supplier, and exporter of advanced beverage packaging machinery, proudly presents the Automatic RFC Isobaric Carbonated Beverage Filling Machine for PET bottles. This high-performance monoblock system is engineered to provide precise, hygienic, and high-speed filling of carbonated beverages in PET bottles. Built with a perfect blend of advanced mechanical design and modern automation, it ensures unmatched reliability and productivity, making it the ideal solution for beverage manufacturers in South Africa and across the globe.

Designed for bottles ranging from 100 ml to 1000 ml, this machine integrates Rinsing, Isobaric Filling, and Capping into a single compact monoblock system. This makes it perfect for beverage producers aiming to achieve consistent carbonation, uniform filling accuracy, and leak-proof sealing in plastic bottles.

With its robust construction, advanced controls, and export-grade engineering, Technogen Enterprise offers this machine as a strategic solution for brands requiring high-speed RFC Isobaric Carbonated Filling Machine built to meet international standards. It is also recognized in the industry under terms such as High-Speed RFC Isobaric Carbonation Filling Machine, RFC Isobaric Carbonated Drink Rinser Filler Capper Machine, and RFC Isobaric Carbonation Filling & Capping Monoblock Machine.

Overview of the Machine

The Automatic RFC Isobaric Carbonated Beverage Filling Machine for PET bottles is purpose-built for carbonated beverages, where carbonation retention, hygiene, and sealing integrity are crucial. It is ideal for a variety of beverages, including:

• Carbonated soft drinks

• Soda and aerated beverages

• Sparkling flavored beverages

• Energy drinks

• Functional carbonated formulations

• Tonic and mixer beverages

Carbonated beverages require careful handling during bottling. They demand:

• Controlled turbulence to prevent foam

• Zero oxygen ingression to preserve carbonation

• Stable CO₂ pressure for consistency

• Accurate fill levels to maintain product quality

• Reliable sealing to ensure leak-proof bottles

This machine addresses all these factors through its advanced counter-pressure isobaric filling system, supported by a stainless-steel frame, sophisticated valve engineering, and synchronized rotary handling. The result is a system that delivers consistent output over long production cycles with minimal operator supervision.

Machine Design & Construction

Designed for long-term operational durability, the monoblock system uses a robust stainless-steel frame, SS304/SS316L product contact parts, and hygienic construction throughout. The layout ensures effortless cleaning, low maintenance, and safe operation.

Key construction features include:

• Rotary rinsing turret with neck-handling grips for stable bottle movement

• Pressurized isobaric filling bowl to maintain carbonation stability

• ULTRA mechanical isobaric valves for precise filling

• Star-wheel bottle transfer system for smooth movement

• High-speed plastic screw capping turret

• Full body guarding with safety interlocks to ensure operator safety

• PLC and HMI automation with built-in diagnostics for monitoring and performance tracking

This configuration ensures high performance, longevity, and reliability for continuous production under demanding conditions.

Working Process

The RFC Isobaric Carbonated Drink Rinser Filler Capper Machine performs three synchronized processes:

1. Rinsing

Every PET bottle undergoes an internal cleaning cycle prior to filling. The rinsing section uses:

• Neck-handling gripping system for bottle stability

• Stainless-steel spray nozzles for precise cleaning

• Sterile air or water rinsing to remove contaminants

• Controlled inversion & drainage for optimal cleanliness

• "No Bottle – No Rinse" operation to prevent waste

This ensures that all bottles are clean and free of dust, particles, or contaminants before entering the filling module.

2. Isobaric Filling (Counter-Pressure Technology)

The isobaric counter-pressure filling system is crucial for carbonated beverage bottling. The machine uses:

• ULTRA 2-step mechanical filling valves

• CO₂ pressurization and pressure equalization

• Oxygen removal through pre-evacuation

• Turbulence-free long-tube filling to minimize foam formation

• Controlled venting for precise fill levels

Isobaric Filling Cycle:

1. The bottle is lifted and sealed beneath the filling valve.

2. Internal air is evacuated to reduce oxygen content.

3. CO₂ pressurization prepares the bottle for filling.

4. The beverage flows once the pressures are matched.

5. The system minimizes turbulence to prevent foam.

6. Snift action releases excess pressure to achieve the correct fill level.

Benefits of Isobaric Filling:

• Maintains carbonation integrity

• Reduces foaming during filling

• Ensures consistent fill volume

• Preserves flavor profile and enhances shelf life

• Controls headspace to prevent overflow

This system ensures each bottle is perfectly carbonated, preserving product quality and taste.

3. Capping (Plastic Screw Capping)

PET bottles require high-precision screw capping to ensure secure, tamper-proof sealing. The machine uses:

• High-speed rotary capping heads

• Magnetic torque adjustment for precise sealing

• Stabilized PET bottle holders to prevent movement

• Automatic cap feeder and chute for continuous operation

• "No Bottle – No Cap" system to prevent waste

This guarantees leak-proof, tamper-resistant sealing in all bottle formats.

Salient Features

• Fully automatic RFC monoblock system

• Supports 100 ml to 1000 ml PET bottles

• Stainless-steel structure with hygienic design

• ULTRA isobaric filling valves for high carbonation accuracy

• Smooth bottle transfer via star wheels

• PLC & HMI-based controls with recipe settings and real-time monitoring

• CIP-compatible design for efficient cleaning

• Controlled CO₂ pressurization and air removal for consistent carbonation

• High accuracy with minimal foaming

• Safe operation with guarded enclosures

• Easy format changeover for flexible production

Technical Highlights

The RFC Isobaric Carbonated Filling Machine offers a high-speed, streamlined workflow, with the following key attributes:

• Counter-pressure filling for consistent carbonation stability

• Pressurized isobaric product tank for equalized filling

• Precise venting control to maintain accurate fill levels

• High-pressure rinsing for efficient bottle cleaning

• Anti-rotation bottle support during capping for precision

• Automatic rejection of improperly capped bottles (optional)

• Optional hot water spray at discharge for enhanced hygiene

This makes the model ideal for brands requiring export-grade performance, especially for South African manufacturers aiming for global standards.

Machine Advantages

• Optimal carbonation retention for lasting freshness

• Accurate filling under varying pressure conditions

• Minimal manual intervention for efficient operations

• Reduced product spillage and waste

• Efficient sanitation with CIP compatibility

• Fast format changeover to handle different bottle sizes

• Long operational life with low maintenance costs

• Ideal for high-speed production environments

Applications

This machine is perfect for a wide range of beverage manufacturers in South Africa, including:

• Carbonated soft drink manufacturers

• PET bottle soda producers

• Sparkling and flavored beverage companies

• Energy drink facilities

• Tonic water & mixer brands

• Contract bottling plants

It supports PET bottle sizes from 100 ml to 1000 ml, making it versatile for different product categories.

Technical Specifications

Why Choose Technogen Enterprise?

Technogen Enterprise is trusted by beverage manufacturers globally for:

• Precision-engineered carbonation filling systems

• Strong international presence and support, including in South Africa

• High-grade stainless steel fabrication for durability and hygiene

• Fast delivery and installation support

• Long-term reliability for continuous production

• Customization based on bottle size, speed, and layout

• Competitive pricing with proven performance

Leading brands in South Africa rely on Technogen Enterprise for durable, efficient, and future-ready filling technology.

Frequently Asked Questions (FAQs)

Q1: Can the machine fill carbonated beverages in PET bottles?
A1: Yes, it is specifically designed for PET bottle carbonation.

Q2: What bottle sizes are supported?
A2: It accommodates 100 ml to 1000 ml PET bottles.

Q3: What capping system is used?
A3: The machine uses plastic screw capping.

Q4: Does the system preserve carbonation?
A4: Yes, it uses isobaric counter-pressure filling to maintain carbonation.

Q5: What speeds are available?
A5: It can fill 3,000 to 12,000 bottles per hour, depending on configuration.
