Automatic Single Head Crown Capping Machine – South Africa
Automatic Single Head Crown Capping Machine Details
Automatic Crown Capping Machine for Bottling Lines in South Africa

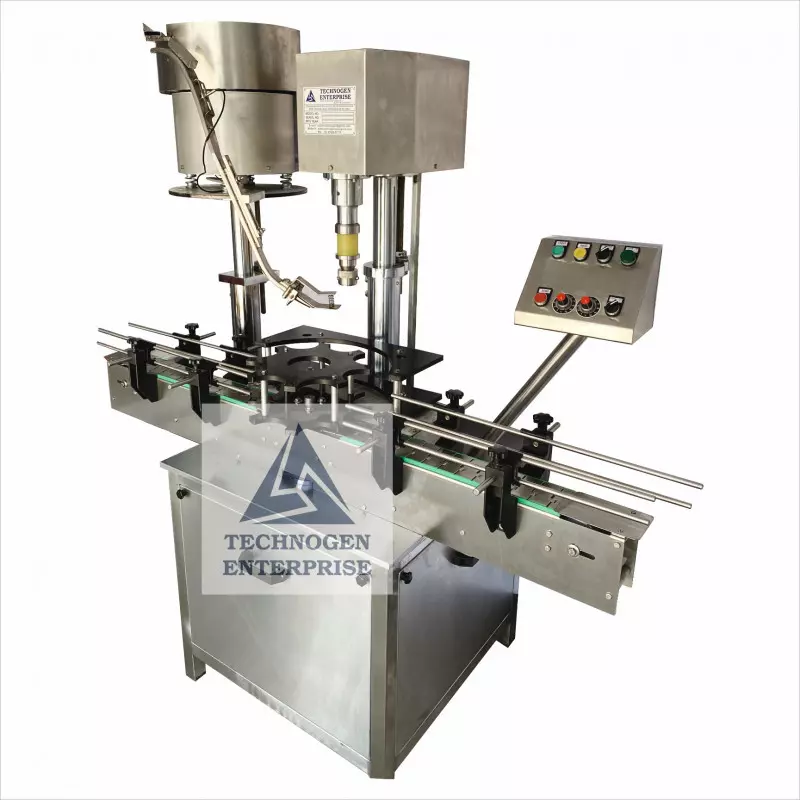

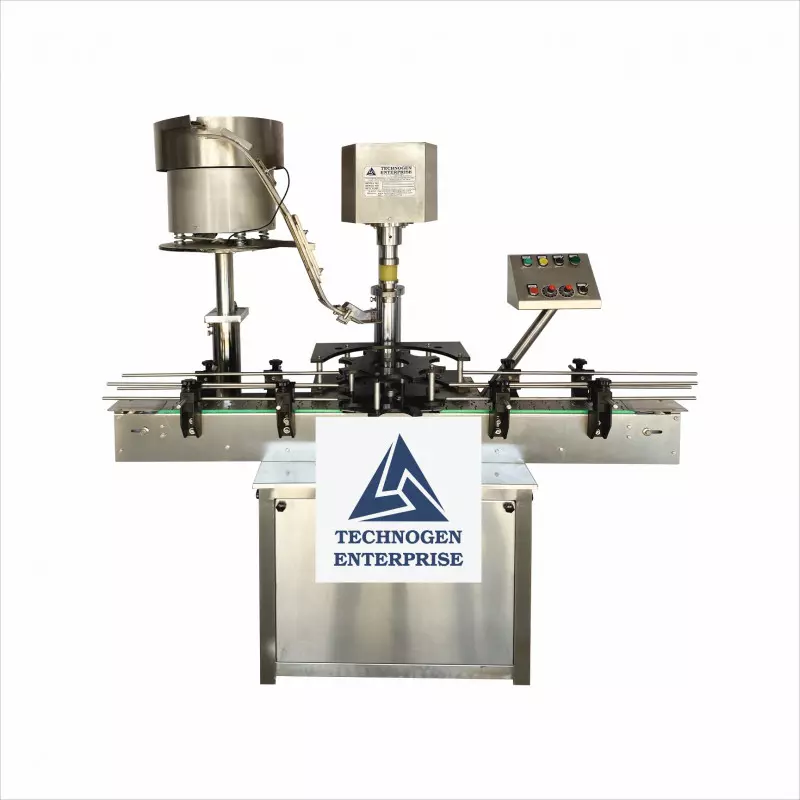

Technogen Enterprise proudly presents the Automatic Single Head Crown Capping Machine (Model TGCROWN-50) – a next-generation bottle sealing solution that delivers precision, speed, and performance. Whether you're sealing beer, sparkling water, or fermented beverages, this machine is engineered for accuracy and high throughput in demanding production environments.
With a consistent production speed of 30 to 40 bottles per minute, this single-head crown capper is an ideal fit for medium to large-scale bottling plants across Johannesburg, Cape Town, Durban, Port Elizabeth, and Pretoria.
Ideal for Beverage Manufacturers in South Africa
This versatile machine is widely used in:
Beer breweries – for crown sealing on glass or PET bottles
Carbonated drink plants – secure sealing for soda or fizzy drinks
Mineral water packaging – sealing sparkling or still water bottles
Winemaking units – fermenting wine bottles with secure closure
Industrial packaging – small batch chemical or cleaning solutions in crown-capped containers
Whether your facility is based in Cape Town’s beverage corridor or Durban’s coastal bottling hubs, this machine ensures long-lasting, tamper-proof crown sealing for all standard crown caps.
How It Works – Crown Cap Sealing Operation
Technogen's TGCROWN-50 is designed to deliver consistent capping precision, minimal downtime, and operator-friendly functionality.
Step-by-Step Process:
Bottle Loading
Bottles are fed onto the stainless steel slat conveyor, where they are guided by star wheels made of durable UHMW / Delrin material.Cap Sorting
Crown caps are sorted and oriented via a high-speed vibrator bowl feeder, ensuring that each cap is properly aligned before application.Cap Pickup & Placement
The crown capping head uses a shut pick-up mechanism (single cam-controlled) to pick and place the crown cap precisely on top of the bottle.Sealing
The crown corking head seals the cap firmly, ensuring a leak-proof, tamper-resistant closure ideal for pressure-sensitive beverages like beer or soda.Post-Sealing Inspection (Optional)
With PLC or HMI upgrades, inspection systems can be integrated to check cap fitment.
Key Features of TGCROWN-50 Automatic Crown Capper
Built with stainless steel SS 304, this robust machine is designed for continuous production environments. Below are the major features that make it an industry favorite:
? Salient Features:
Compact & Modular Design
Streamlined frame fits easily into any bottling line setup.Stainless Steel SS304 Build
Machine body, doors, and head components are fabricated from corrosion-resistant stainless steel for hygiene and longevity.Synchronized System Control
A Variable Frequency Drive (VFD) synchronizes the main conveyor, turret, and star wheels, ensuring smooth operation.Quick Changeover System
Change parts are easily replaceable, minimizing downtime during product or bottle size changes.UHMW/Delrin Contact Parts
Durable star wheels and guides ensure long-term wear resistance with minimal maintenance.Single Head Crown Capping Mechanism
Optimized for accuracy with cam-driven pick-up and seal operation.Integrated Counter
A 6-digit production counter tracks output in real-time.Smart Cap Feeding System
Advanced vibrator feeder ensures uninterrupted cap delivery.Safety Photoelectric Sensor
Machine halts automatically if no crown caps are detected in the delivery chute.
Safety First – Built-in Protection Systems
Technogen’s automatic crown capping machine includes comprehensive safety protocols to protect operators and minimize product loss.
Standard Safety Features:
CGMP-Compliant Design – Suitable for food-grade and pharmaceutical environments
Star Wheel Safety Clutch – Stops the machine in case of jamming or misfeed
No Bottle – No Cap – Avoids cap waste and misapplication
Auto Cap Feeder On/Off System – Feeder activates only when required
Emergency Stop Functionality – Ensures immediate machine shutdown in emergencies
These features align with South African safety and hygiene standards, making it suitable for high-volume food and beverage operations.
Technical Specifications of Model TGCROWN-50
| Parameter | Details |
|---|---|
| Machine Model | TGCROWN-50 |
| Brand | Technogen Enterprise |
| Automation | Fully Automatic |
| Bottle Type | Glass, Plastic, PET |
| Cap Type | Crown Cork |
| Capping Mechanism | Shut Pick-Up with Single Cam Control |
| Bottle Diameter | 22 mm to 100 mm |
| Bottle Height | 55 mm to 150 mm |
| Crown Cap Diameter | 22 mm to 65 mm (with change parts) |
| Crown Cap Height | 15 mm to 18 mm |
| Production Speed | 30–40 bottles per minute* |
| Cap Feeder | Vibrator Feeder |
| Power Consumption | 1 HP (Main Drive) + 0.25 HP (Feeder Unit) |
| Voltage Requirement | 440 V, 3 Phase, 4-Wire, 50 Hz |
| Machine Control Panel | Bottom Pendant Mounted |
| Conveyor Height | Adjustable from 800 mm to 850 mm |
| Machine Dimensions (L x W x H) | 1830 mm x 850 mm x 1500 mm |
| Net/Gross Weight | 250 Kg / 450 Kg |
| Country of Origin | Made in India |
*Output may vary depending on bottle and cap dimensions.
Optional Add-On Features
To further enhance performance and operator convenience, Technogen offers the following upgrade options:
PLC + HMI Interface – For intelligent control and real-time diagnostics
Auto Head Lift System – Automates height adjustment for different bottle sizes
Safety Cabinet Enclosure – Made from toughened glass, polycarbonate, or acrylic for full operator protection
Packaging, Delivery & Support Across South Africa
We ensure smooth, safe, and timely deliveries to all major cities in South Africa, including:
Johannesburg – Large-scale brewing and bottling operations
Durban – Mineral water, soda, and juice producers
Cape Town – Craft beer breweries and sparkling wine makers
Pretoria – Dairy and specialty drink manufacturers
Port Elizabeth – Small-scale local beverage brands
| Support & Service | Details |
|---|---|
| Packaging | Export-standard wooden box with anti-rust coating |
| Delivery Timeline | 3–4 weeks (subject to customization) |
| Minimum Order | 1 Unit |
| Installation & Training | Available On-site or Remotely |
| Warranty | 1 Year against manufacturing defects |
| After-Sales Service | Available throughout South Africa |
| Spare Parts Availability | Stocked for prompt dispatch |
Why Choose Technogen Enterprise?
Decades of Industrial Experience
Tailor-made Automation Solutions
Precision-engineered Machines
Global Export Standards Compliance
Dedicated Technical Support
Rapid Installation & Commissioning
Technogen Enterprise continues to serve the growing bottling sector in South Africa, offering smart automation that ensures safety, speed, and savings.
Upgrade Your Capping Line Today
If you're seeking efficient, robust, and affordable crown capping machinery, look no further. The TGCROWN-50 is your all-in-one answer for a wide range of bottle types and beverages.
Get in Touch For:
Free Quotation
Live Demo Video
Custom Engineering Requests
Delivery Anywhere in South Africa
Choose Technogen – Seal with Confidence
Elevate your beverage packaging line with Technogen’s Automatic Single Head Crown Capping Machine – the ultimate balance of technology, precision, and affordability. Backed by solid engineering and responsive service, this machine will keep your production ahead of the curve.
? Technogen Enterprise – Engineering Excellence in Every Seal
