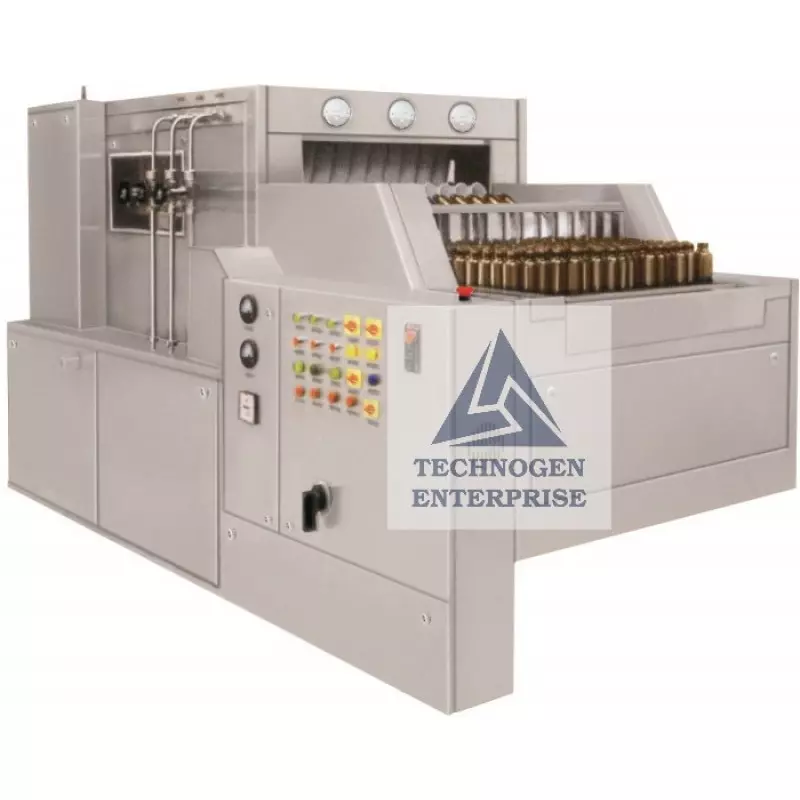

Automatic Tunnel Type Linear Bottle Washing Machine South Africa
Automatic Tunnel Type Linear Bottle Washing Machine Details
Automatic Tunnel Type Linear Bottle Washing Machine South Africa
Technogen Enterprise introduces to South Africa the Automatic Tunnel Type Linear Bottle Washing Machine, a high-performance solution engineered for industries requiring hygienic and efficient cleaning of bottles. Widely used in sectors such as pharmaceuticals, cosmetics, pesticides, and food, this machine is ideal for medium to high-speed production environments. Designed to handle PET, HDPE, glass, and plastic bottles, this equipment delivers thorough internal and external washing with seamless automation and industry compliance.
Available in multiple capacities, our machines are fully customizable and capable of handling speeds from 50 to 300 bottles per minute, making them suitable for operations in Johannesburg, Durban, Cape Town, Gqeberha, East London, Bloemfontein, and industrial regions like Isando, Midrand, Ekurhuleni, and Rosslyn.
Key Benefits of Our Linear Bottle Washing Machine in South Africa
cGMP-Compliant Design: Built for stringent quality assurance and hygiene compliance, suitable for regulated industries.
Precision High-Pressure Spray System: Delivers five internal washes and two external washes with adjustable timing to suit specific cleaning needs.
Robust AISI 316L Construction for Water Tanks: Two stainless steel tanks and pumps (1 for DM water, 1 for re-circulation) enable consistent and clean washing.
User-Friendly Operations: Adjustable washing cycles, variable frequency speed controls, and optional add-ons such as drying stations or inspection units.
Energy Efficient with Customization Ready: Multiple models ranging from 60 BPM to 300 BPM allow you to scale operations with precision.
Whether you are a pharmaceutical company operating in Sandton, a food and beverage manufacturer in Springfield Park, Durban, or a personal care product supplier in Montague Gardens, Cape Town, Technogen's bottle washing solutions can help automate your sanitation processes effectively.
Salient Features of Automatic Tunnel Type Linear Bottle Washing Machine
Modular CGMP Design
SS 304 Body & Access Panels for durability and rust resistance
Electrically Adjustable Washing Durations and cycles
Five Internal Spray Zones & Two External Nozzles for comprehensive washing
Speed Control via VFD (Variable Frequency Drive)
CE Certified Electrical Components
User Safety Features: Emergency switches at both in-feed and out-feed zones
Inspection Windows and Doors for maintenance access
Applicable Industries in South Africa
This machine is essential for:
Pharmaceutical manufacturers in Pretoria, Johannesburg, and Port Elizabeth
Pesticide and agrochemical plants in Mpumalanga and KwaZulu-Natal
Cosmetic and toiletry bottlers in Centurion and East London
Edible and lube oil producers in Limpopo and North West Province
Food and beverage packaging units in Stellenbosch, George, and Paarl
TECHNICAL SPECIFICATION:
Model | TGBW-60T | TGBW-120T | TGBW-240T | TGBW-300T |
Speed | Up to 60 Bottle Per Minute | Up to 120 Bottle Per Minute | Up to 240 Bottle Per Minute | Up to 300 Bottle Per Minute |
Conveyor Height | 750 ± 50 mm | |||
Working direction | Left to Right | |||
Washing Sequence | 5 internal Washes & 2 External Washes | |||
Tanks | 2 nos of AISI 316L tanks ( 1 Each for Re-circulation Water, DM Water) | |||
Pressure Gauge | 3 NOS of Glycrine filled Pressure Gauges. (1 No. each for DM, Re-cycled Water & Compressed Air) | |||
No of Filter | 3 nos each for recycled water , DM Water & Compressed Air | |||
Air consumption | 30 to 50 CFM @ 3 to 4 bar Pressure | |||
Fresh Water consumption | 600 to 900 Ltrs/Hours | |||
DM water Consumption | 600 to 900 Ltrs/Hours | |||
Power Supply | 3 KW to 6 KW depending upon Model | |||
Electrical Connection | 415V, 3 Phase , 50 HZ ,4 core wire | |||
Input Specifications | · 30 ml to 200 ml Bottles without any major change parts. · Accommodate different sizes of bottles with the help of minimal change parts. · Special Customized machines are available for other size and type of containers on request | |||
Add-On Features for South African Packaging Facilities
PLC-HMI Interface: Centralized smart control
Drying Station: Eliminates moisture from bottles post-wash
Inbuilt Inspection Unit: Pre-check for bottle clarity and damage
Bottle Lifting Device: Automated loading at infeed
Advantages for South African Manufacturers
Designed for Harsh Environments: Resistant to dust, humidity, and corrosive conditions typical of coastal regions
Minimal Downtime: Built for continuous operation with easily accessible maintenance points
Certified for Global Trade: CE and cGMP-compliant for local and export applications
Flexible Footprint: Can be adapted for U-line, L-line, or straight-line production setups
Reduced Water Waste: Equipped with filtration for water reuse, ideal for eco-sensitive regions
Why South Africa Chooses Technogen Enterprise?
Established Exporter: Serving clients in Johannesburg, Cape Town, Durban, Bloemfontein, Gqeberha, Pretoria, and more
Locally Supported: Spare parts and remote support available
Custom Engineering: Designed to fit local regulations including SABS and HACCP compliance
Energy & Water Efficient: Designed with Africa’s resource-conscious industries in mind
