Precision Semi-Automatic Tablet Counting & Filling Machine In South Africa

Advanced Semi-Automatic Tablet Counting and Filling Machine for South African Pharma Industry

At Technogen Enterprise, we bring together technological innovation, GMP-compliant design, and customer-driven features in our Semi-Automatic Tablet Counting and Filling Machine. Designed for accuracy, flexibility, and user-friendliness, this machine is a reliable solution for pharmaceutical manufacturers across South Africa, including Johannesburg, Cape Town, Durban, Pretoria, and Port Elizabeth.

Whether you're packaging tablets, capsules, soft gels, or pills, our machine ensures consistent performance in mid-volume production facilities, ideal for businesses striving for affordable automation without compromising on quality.

Perfect for South African Pharma Companies

With South Africa’s pharmaceutical market growing across provinces like Gauteng, KwaZulu-Natal, Western Cape, and industrial zones in Bloemfontein and East London, the demand for semi-automated yet precise counting and filling solutions is on the rise.

Technogen’s TGSTC-500 model is designed to address that need. Whether you’re a contract manufacturer, herbal supplement producer, or nutraceutical packaging company, this machine provides:

• ✅ High-speed output

• ✅ Minimal operator training

• ✅ Compact design for limited space

• ✅ Regulatory-compliant operation

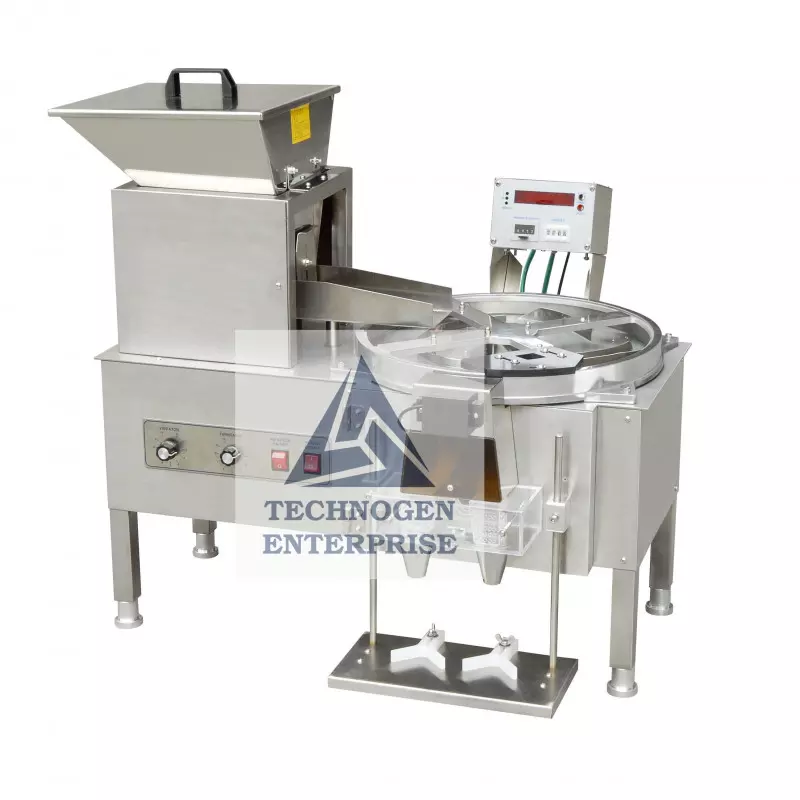

Machine Overview

Our Semi-Automatic Tablet Counting and Filling Machine combines intelligent electronics with rugged mechanical engineering to deliver maximum accuracy with minimum intervention. With advanced cross beam frame sensors, programmable PLC control, and adjustable vibration speeds, this machine ensures every count is precise.

Key Operational Features & Workflow

Here’s how our tablet counting machine operates:

1. Manual Bottle Handling

• Operators place empty bottles under the dual nozzles.

• Once filling is complete, the filled bottles are removed manually.

• Ideal for controlled batch production with reduced risk of mechanical errors.

2. Tablet Loading

• Tablets, capsules, or pills are loaded into a bulk hopper.

• A vibratory feeder tray ensures even and continuous flow onto the glass turntable.

3. Single File Arrangement

• Tablets form a single line as they are rotated via the glass plate and move through precision guiding channels.

• This eliminates double counts or misreads during the scanning process.

4. Diverter & Filling Station

• A diverter head guides tablets to one of two funnel fill stations.

• Bottles are filled in rotation, automatically switching between stations to enable non-stop counting.

5. Sensor-Based Counting Accuracy

• As each tablet passes through the cross beam frame fiber optic sensor, the signal is counted via a smart PLC.

• When the pre-set count is reached, the flow stops or diverts to the next bottle automatically.

6. Safety Mechanism

• If no bottle is detected under a fill station, the machine halts operation using fiber optic sensors.

• Prevents spillage and conserves energy.

Standout Features at a Glance

Here’s what makes Technogen’s TGSTC-500 an ideal solution for pharmaceutical industries in South Africa:

• ✅ CGMP-Compliant Construction
  Ensures adherence to current pharmaceutical manufacturing norms.

• ✅ Stainless Steel Body
  Made from AISI 304 stainless steel for the body and AISI 316L/304 for hopper and contact parts.

• ✅ Compact Footprint
  Ideal for limited factory space, especially in urban facilities in Johannesburg or Durban.

• ✅ User-Friendly PLC-HMI Interface
  Customized programming specifically for tablet counting.

• ✅ Automatic Tablet Feeding System
  Hopper vibrator ensures continuous tablet supply for uninterrupted production.

• ✅ Adjustable Vibrator Speed
  Enables precision adjustment to meet different product shapes and volumes.

• ✅ High-Speed Output
  Up to 500 tablets/minute or 300 capsules/minute, depending on size and shape.

• ✅ Dual Funnel Filling
  Two simultaneous fill stations improve efficiency while maintaining accuracy.

• ✅ Turntable Design
  Facilitates even distribution and prevents tablet overlap or jamming.

• ✅ Quick Cleaning with Air Gun
  Integrated air gun simplifies post-production cleanup.

• ✅ Variable Frequency Drive (VFD)
  Adjust machine speed based on production demand.

• ✅ Smart Gearbox Design
  Coupled gearbox and geared motor allow smooth motion and long operational life.

Technical Specifications

Compatibility and Applications

This machine is engineered for flexible use across multiple pharmaceutical formats:

✅ Compatible Products:

• Hard Tablets

• Soft Gel Capsules

• Round Pills

• Herbal Tablets

• Multivitamin Capsules

• Ayurvedic Pills

✅ Application Sectors:

• Pharmaceutical Manufacturing Plants

• Herbal and Ayurvedic Medicine Units

• Contract Packaging Facilities

• Vitamin and Supplement Brands

• Laboratory-scale Production Units

• Research & Development Facilities

Perfect Fit for South African Market

The TGSTC-500 model is trusted by mid-size pharmaceutical companies and supplement producers across South Africa's core cities and emerging industrial zones. Its plug-and-play nature makes it especially appealing for facilities in:

• Cape Town – where real estate is limited and compact design is critical

• Johannesburg & Pretoria – for commercial-scale facilities

• Durban & Port Elizabeth – where export-focused operations rely on precision

• Bloemfontein & Richards Bay – developing pharma zones with infrastructure constraints

Energy Efficiency & Sustainability

Technogen’s semi-automatic machine not only improves efficiency but also reduces energy use:

• Uses fiber sensors to eliminate empty bottle filling.

• Minimizes waste through diverter control logic.

• Smart gearbox design ensures optimal torque and reduced energy consumption.

This approach aligns with South Africa’s growing commitment to sustainable manufacturing.

After-Sales Support & Services in South Africa

Technogen Enterprise provides full-cycle support to clients across South Africa, offering:

• On-site installation and commissioning

• User manuals and training guides

• OEM spare parts and maintenance tools

• 24/7 customer support

• aLocal technician access via partners in South Africa

Order Now – Upgrade Your Tablet Counting Line

If you're searching for a cost-effective, accurate, and user-friendly tablet counting solution, the Technogen TGSTC-500 is your best option. With high-speed output, minimal maintenance, and compact design, it’s built to accelerate your growth in today’s competitive pharmaceutical landscape.

Whether you're located in:

• Johannesburg

• Cape Town

• Durban

• Pretoria

• East London

• Sasolburg

• Port Elizabeth

• or anywhere in Southern Africa...

We are ready to support your automation journey.
