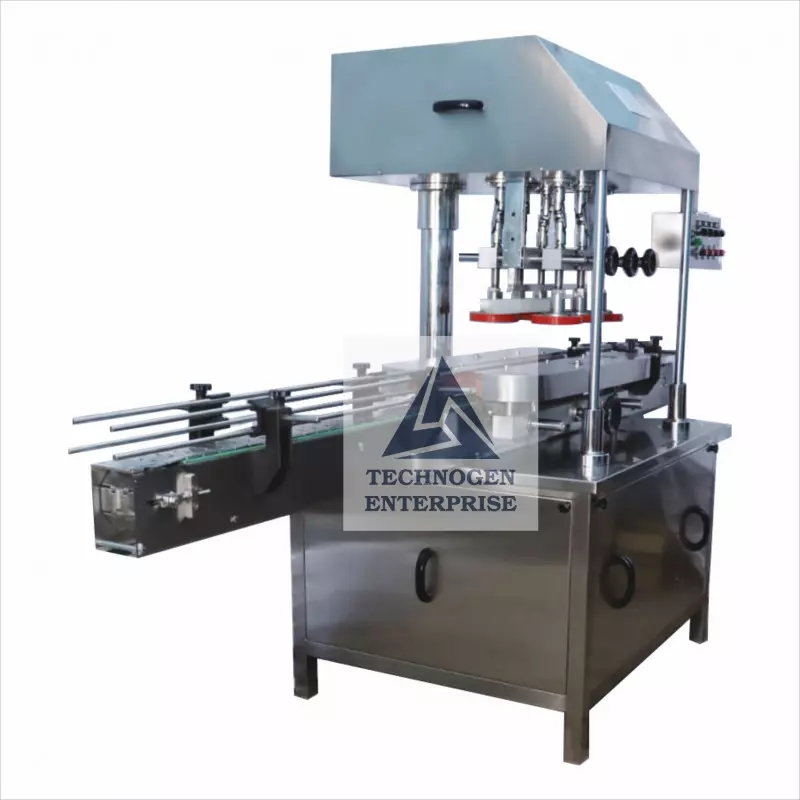

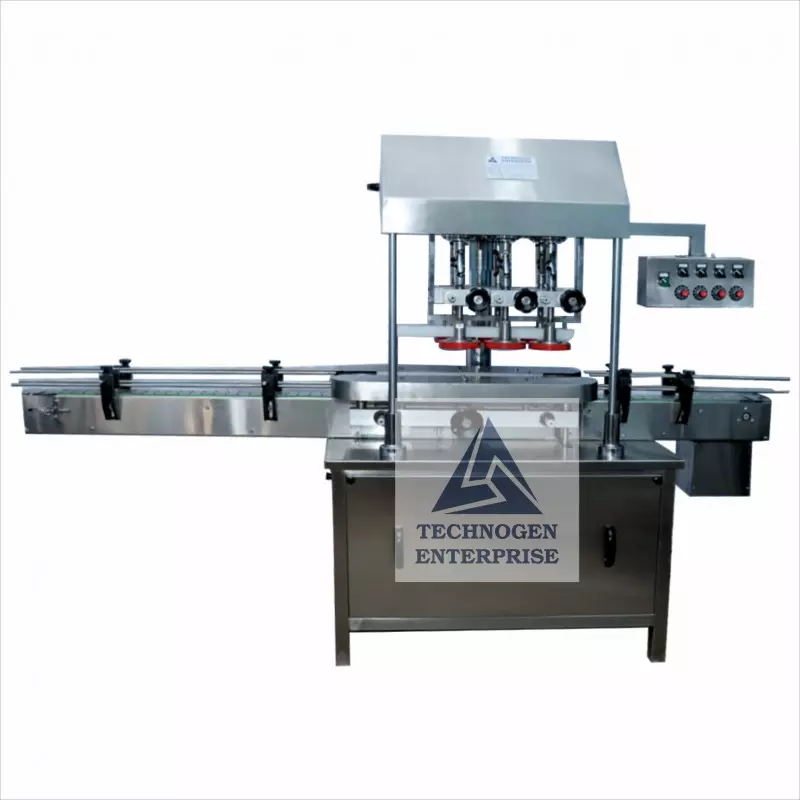

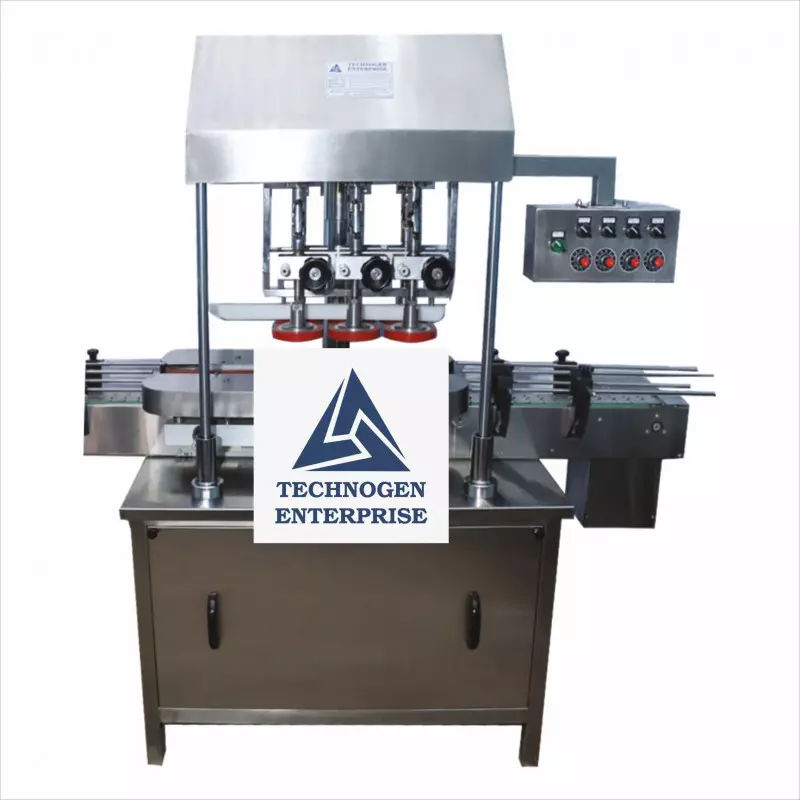

Automatic Linear Capping Machine For High-Speed Bottling In South Africa
Automatic Linear Capping Machine Details
Industrial-Grade Automatic Linear Capping Machine
If you're operating in a fast-paced production environment in South Africa and need a robust solution for high-speed bottle capping, Technogen Enterprise proudly presents the TGLC-100 Automatic Linear Capping Machine. Designed for maximum output with minimal intervention, this linear capping system ensures consistent cap application across various bottle shapes and sizes, with a throughput of up to 100 bottles per minute.
Whether you're based in Johannesburg, Cape Town, Durban, Gqeberha (Port Elizabeth), or Pretoria, this machine is ideal for expanding your packaging line with precision, efficiency, and reliability.
Why Choose the TGLC-100 Automatic Linear Capping Machine?
With advanced features and tool-less adjustment, the TGLC-100 is ideal for bottling lines requiring flexibility with minimal change parts. Its linear architecture allows uninterrupted motion and seamless handling of round, flat, and irregularly shaped bottles.
This machine is widely used in:
Pharmaceutical Bottling
Distilleries & Breweries
Cosmetics & Toiletries
Edible Oil & Lubricant Packaging
Pesticides & Agrochemicals
Food, Beverages & Confectionery
Top Features of the Automatic Linear Capping Machine
Compact CGMP Model – Complies with Good Manufacturing Practices.
All Stainless Steel Construction – Built using fine-grade SS 304 material.
Linear Screw Capping Mechanism – Compatible with a wide range of caps and containers.
Versatile Cap Options – Works with plastic threaded caps, pump sprays, metal caps, and jars.
Tool-Less Bottle Adjustment – Quick adaptation to different container diameters and heights.
Bottle Gripping Belt Assembly – Ensures stable positioning during capping.
Three Sets of Tightening Discs – Designed to rotate and re-rotate for precise capping.
Built-In Clutch in Discs – Prevents over-rotating, ensuring cap integrity.
Variable Speed Control – Integrated with a Variable Frequency Drive (VFD).
Low Power Consumption – Just 2 KW, making it one of the most energy-efficient in its class.
Maintenance-Free Operation – Engineered for longevity and ease of use.
Safety & Automation Interlocks
Technogen prioritizes machine safety and error-proof operation with the following built-in mechanisms:
No Bottle–No Cap System – Prevents cap wastage.
Auto Stop if No Cap Detected – Cap feeder halts when no cap is available.
Optional PLC-HMI Integration – User-friendly touchscreen interface for advanced monitoring.
Safety Cabinet (Optional) – Toughened glass or polycarbonate doors with interlock feature for enhanced operator safety.
Technical Specifications of TGLC-100
| Specification | Details |
|---|---|
| Model | TGLC-100 |
| Machine Type | Automatic Linear Screw Capping |
| Motion Direction | Left to Right |
| Cap Application | Screw Caps on PET, HDPE, Glass & Plastic Bottles |
| Production Speed | Up to 100 bottles per minute |
| Speed Control | Variable Frequency Drive (VFD) |
| Cap Feeding System | Vibratory or Elevator-type Cap Feeder |
| Bottle Holding | Belt Grip Assembly |
| No. of Cap Tightening Discs | 6 (3 Sets of Twin Discs) |
| Container Diameter Range | 50 mm to 200 mm |
| Container Height Range | 75 mm to 400 mm |
| Cap Diameter Range | 18 mm to 120 mm |
| Conveyor Height | Adjustable from 800 mm to 850 mm |
| Power Requirement | 2 KW, 440V, 3 Phase, 50 Hz |
| Control Panel | Stainless Steel 304, bottom-mounted pendant type |
| Production Counter | 6-digit digital counter inbuilt |
| Machine Dimensions (L x W x H) | 1830 mm x 1230 mm x 1600 mm |
| Net Weight | 250 kg |
| Gross Weight | 475 kg |
| Country of Origin | India |
| Warranty | 1 Year from date of dispatch |
Minimal Change Parts = Maximum Efficiency
One of the key advantages of this machine is its ability to handle various bottles without needing frequent changeovers:
Round, Flat, Oval, Irregular Bottles
Plastic, Glass, HDPE, LDPE, PET Containers
Jars, Sprayers, and Pump Caps
This makes the TGLC-100 exceptionally versatile for companies dealing with multiple SKUs or frequent batch changes — especially useful for South African packagers serving diverse product lines.
Ideal for South African Industrial Zones
This machine is perfectly suited for high-output bottling lines across:
Gauteng: Including Johannesburg & Pretoria, known for pharmaceuticals and contract packaging.
KwaZulu-Natal: Durban’s chemical and FMCG industry thrives with inline automation.
Western Cape: Cape Town’s food and cosmetic manufacturing lines demand high-speed automation.
Eastern Cape: Ideal for beverage and oil packaging facilities in Gqeberha and East London.
Ordering & Trade Details
| Parameter | Details |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Monthly Production Capacity | 5 Machines |
| Product Code | TGLC-100 |
| Delivery Time | 4 to 5 Weeks |
| Packaging | ISBM-15 Compliant Sea-Worthy Wooden Crating |
| Nearest Seaport | Mundra, Gujarat, India |
| Payment Mode (International) | T/T, L/C |
Benefits of Choosing Technogen for South Africa
International-Grade Exports: Trusted by clients in 20+ countries.
Quality Guaranteed: 1-year warranty and ISBM-compliant packaging.
Customer-Centric Engineering: Solutions built for South African markets.
Remote Assistance & Spare Parts: Seamless support even after installation.
Get a Quote Today
Looking to increase your capping efficiency without the hassle of frequent changeovers? The TGLC-100 Automatic Linear Capping Machine is your smart investment for high-speed, low-maintenance, and precision capping.
Contact Technogen Enterprise today for a quote, live demo, or consultation on your specific application. Let us help you power up your packaging line in Johannesburg, Durban, Cape Town, or any other South African city.
Related Products

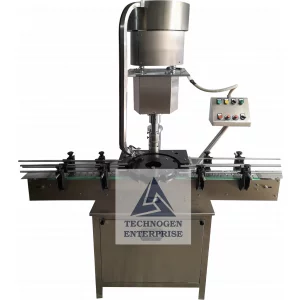

Automatic Single Head Screw Capping Machine
Fully Automatic Screw Capping Machine for South African IndustriesIf your business requires reliable high-speed cappin... Continue

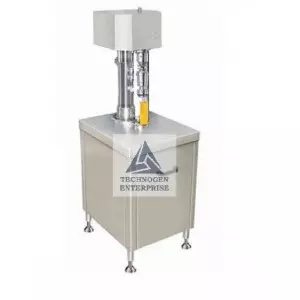

Semi Automatic Screw Capping Machine
Advanced Semi Automatic Screw Capping Machine for Small to Medium IndustriesAre you a start-up or growing business in ... Continue

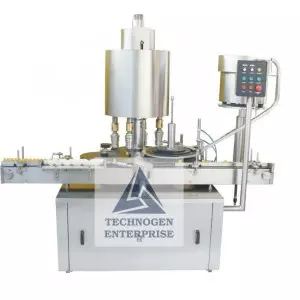

Pick And Place Screw Capping Machine
High-Performance Rotary Pick and Place Screw Capping Machine for South Africa’s Industrial SectorFor manufacture... Continue

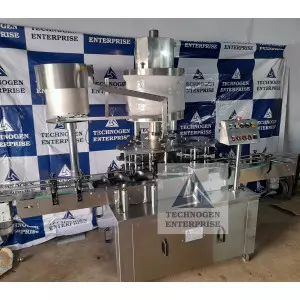

Automatic Rotary Bottle Screw Capping Machine
