Automatic Rotary Bottle Screw Capping Machine Manufacturer South Africa

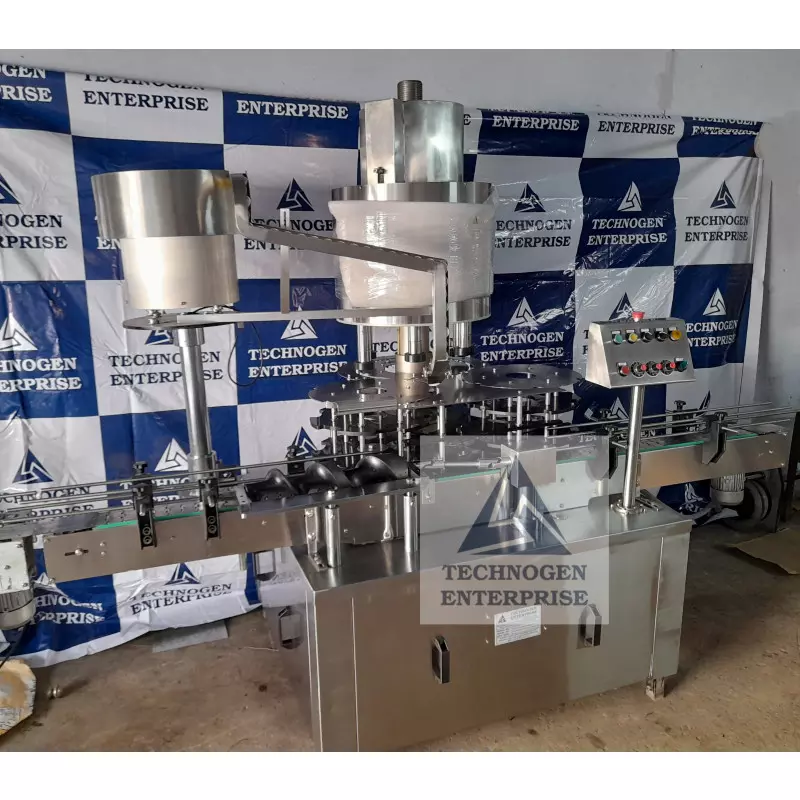

Automatic Rotary Bottle Screw Capping Machine Details
Premium Multi-Head Screw Capping Solutions by Technogen Enterprise
Technogen Enterprise proudly presents its high-performance Automatic Rotary Bottle Screw Capping Machine, available in 4-head, 6-head, 8-head, and 12-head configurations. Engineered for maximum productivity and versatility, this advanced capping system delivers speeds ranging from 60 to 200 bottles per minute, making it ideal for high-output packaging lines across diverse industries.
This screw capper is compatible with round, square, and flat bottles made of glass, PET, HDPE, and LDPE. Whether you're operating in pharmaceuticals, cosmetics, agrochemicals, or food & beverage sectors, this machine guarantees precision, consistency, and reliability in every cycle.
✅ How It Works – Shut Pick-Up Capping Mechanism
The capping process is streamlined through a shut pick-up mechanism, where:
Bottles are spaced using a feed worm.
A star wheel indexes each bottle to the capping station.
Screw caps are delivered via a cap feeder into a chute.
Bottles collect caps in motion, followed by precise tightening through jaw-type capping heads with mechanical torque adjustment.
Key Features & Benefits
CGMP-Compliant Construction: Built to international current Good Manufacturing Practices for hygiene and safety.
SS 304 Contact Parts: Ensures long-term durability and resistance to corrosion.
Flexible Bottle Handling: Handles a variety of bottle shapes and materials with ease.
Synchronised Operations: A single motor drives the conveyor, star wheels, and turret, ensuring smooth performance.
Maintenance-Free Design: Built for longevity with minimal servicing.
Custom Cap Feeding Options: Choose between a vibratory feeder, mechanical orientator, or elevator system based on cap type.
Rapid Changeover: Swift transitions between different bottle and cap sizes to reduce downtime.
Built-In 6-Digit Counter: Monitor production output in real-time.
Delrin or SS Conveyor Options: Slat or modular belt available for customization.
Built-In Safety Features
No Bottle – No Cap System: Prevents cap wastage and ensures efficient operation.
Emergency Stop Function: Ensures operator safety at all times.
Mechanical Safety Clutches: Installed on feed worm and star wheels to halt the machine in case of jams or abnormalities.
Outfeed Jam Sensor: Instantly detects bottle blockages and stops the system to avoid product damage.
Technical Specifications
Machine Name | Automatic 4 head Rotary Bottle Screw Capping Machine | Automatic 6 head Rotary Bottle Screw Capping Machine | Automatic 8 head Rotary Bottle Screw Capping Machine |
Model | TGSC-80 | TGSC-120 | TGSC-150 |
Brand | Technogen Enterprise | Technogen Enterprise | Technogen Enterprise |
Direction | Left to Right | Left to Right | Left to Right |
Automation Grade | Automatic | Automatic | Automatic |
Machine Usage application | Apply Screw cap on the Glass , Plastic and Pet Bottle | Apply Screw cap on the Glass , Plastic and Pet Bottle | Apply Screw cap on the Glass , Plastic and Pet Bottle |
Type of Screw Capping | Shut pick up (single cam control pick up and release of cap) | Shut pick up (single cam control pick up and release of cap) | Shut pick up (single cam control pick up and release of cap) |
Machine Production Speed | Up to 60 to 70 Bottle per minute depending upon the diameter of the bottle | Up to 110 to 120 Bottle per minute depending upon the diameter of the bottle | Up to 130 to 140 Bottle per minute depending upon the diameter of the bottle |
Machine Transmission | Worm gear box coupled with Motor | Worm gear box coupled with Motor | Worm gear box coupled with Motor |
Speed Variation | Through Variable Frequency Drive | Through Variable Frequency Drive | Through Variable Frequency Drive |
Machine Motion | Rotary Continuous | Rotary Continuous | Rotary Continuous |
Machine Finish | Stainless Steel Matt Finish | Stainless Steel Matt Finish | Stainless Steel Matt Finish |
Bottle diameter | 22 mm to 80 mm max | 22 mm to 80 mm max | 22 mm to 80 mm max |
Bottle height | 55 mm to 200 mm max | 55 mm to 200 mm max | 55 mm to 200 mm max |
Screw cap diameter | 22 mm to 52 mm diameter | 22 mm to 52 mm diameter | 22 mm to 52 mm diameter |
No of Screw Capping Head | 4 head | 6 Head | 8 Head |
Type of Screw Capping head | Jaw Type Screw Capping Head with mechanical torque adjustment facility | Jaw Type Screw Capping Head with mechanical torque adjustment facility | Jaw Type Screw Capping Head with mechanical torque adjustment facility |
Air Pressure | 2 KG/Cm2 | 2 KG/Cm2 | 2 KG/Cm2 |
Power Consumption |
|
|
|
Type of Cap feeder | Vibrator feeder, Mechanical orientator and elevator available depending upon the Screw Cap to be handled | Vibrator feeder, Mechanical orientator and elevator available depending upon the Screw Cap to be handled | Vibrator feeder, Mechanical orientator and elevator available depending upon the Screw Cap to be handled |
Electrical Connection | 440 V ,3 Phase (4 Wire System ) 50 HZ | 440 V ,3 Phase (4 Wire System ) 50 HZ | 440 V ,3 Phase (4 Wire System ) 50 HZ |
Control Panel | Bottom Pedant type Machine mounted | Bottom Pedant type Machine mounted | Bottom Pedant type Machine mounted |
Production Counter | Inbuilt | Inbuilt | Inbuilt |
Height of Conveyor from Datum | Adjustable from 800 to 850 mm | Adjustable from 800 to 850 mm | Adjustable from 800 to 850 mm |
Dimension (L X W X H) mm | 1830 x 850 x 1400 | 2130 x 875 x 1400 | 2130 X 915 x 1400 |
Change part | Required if Bottle and Cap Changes | Required if Bottle and Cap Changes | Required if Bottle and Cap Changes |
Net Weight of Machine (KG) | 250 KG | 280 KG | 300 KG |
Gross Weight of Machine (KG) | 450 KG | 480 KG | 500 KG |
Why Choose Technogen Enterprise?
Technogen Enterprise, based in Ahmedabad, India, is a leading manufacturer, exporter, and supplier of world-class screw capping machines. We serve clients across South Africa, the Middle East, Asia, and global markets with competitive pricing, superior engineering, and prompt after-sales support.
Upgrade Your Production Today
Whether you're launching a new production line or scaling an existing facility, the Automatic Rotary Bottle Screw Capping Machine by Technogen Enterprise delivers unmatched performance, safety, and ROI. Contact us for a free consultation, pricing, and custom configuration options.
