High-Speed Multi-Head ROPP Capping Machine- South Africa

AvailabilityPre Order
Serial NumberTGRCS- 60 /100 / 150 / 200
CategoryRopp Cap Sealing Machine, Capping Machines
Payment MethodsCash, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

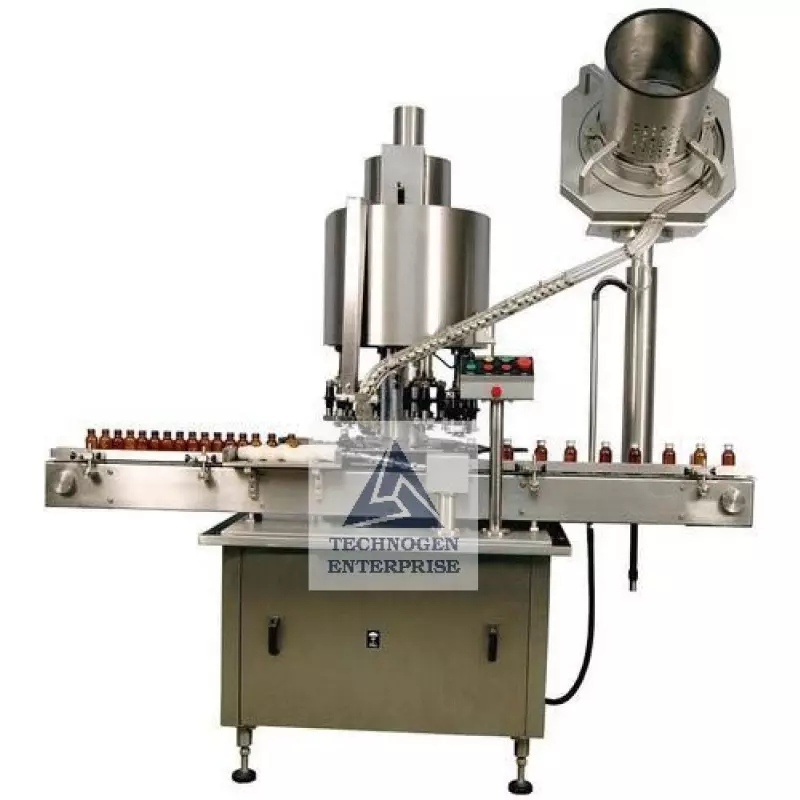

Automatic Multi-head ROPP Capping Machine Details

Technogen Enterprise introduces the Automatic Multi-Head ROPP Capping Machine, a high-performance rotary solution designed for high-speed, precise sealing of aluminum ROPP caps on bottles. Built for industries like pharmaceuticals, wine, distilleries, and beverages, this machine is tailored to meet the demands of South Africa’s industrial hubs, including Johannesburg, Cape Town, Durban, Port Elizabeth, and Pretoria.

With models featuring 4, 6, 8, and 12 heads, production rates range from 60 to 200 bottles per minute, depending on bottle size and cap type.


Salient Features

  • CGMP-compliant modular rotary model

  • SS 304 premium matte finish body

  • Continuous rotary motion for high throughput

  • Vibrator or mechanical cap orientation system

  • Intelligent "No Bottle – No Cap" & cap presence detection

  • Adjustable sealing pressure for various ROPP caps

  • Single synchronized motor for star wheels, turret & conveyor

  • Durable components made from SS, Nylon, and Aluminum

  • Cap feeding options: vibrator bowl, mechanical, or elevator

  • User-friendly 6-digit production counter

  • Safety features with mechanical clutch and emergency stop


⚠️ Advanced Safety & Automation

  • Emergency mushroom button for instant stoppage

  • Out-feed jam detection system

  • CE-certified electronic components

  • In-built safety clutches on star wheels & feed worms

  • Validation documents (DQ, IQ, OQ, FAT, SAT) provided

  • PLC-HMI interface (optional add-on)


Technical Specification

Particular4 Head6 Head8 Head12 Head
ModelTGRCS-60TGRCS-100TGRCS-150TGRCS-200
DirectionLeft to RightLeft to RightLeft to RightLeft to Right
Automation GradeAutomaticAutomaticAutomaticAutomatic
ApplicationROPP capping on glass, PET, HDPE bottlesROPP capping on glass, PET, HDPE bottlesROPP capping on glass, PET, HDPE bottlesROPP capping on glass, PET, HDPE bottles
BrandTechnogen EnterpriseTechnogen EnterpriseTechnogen EnterpriseTechnogen Enterprise
SpeedUp to 60 BPMUp to 100 BPMUp to 150 BPMUp to 200 BPM
Motion TypeRotary ContinuousRotary ContinuousRotary ContinuousRotary Continuous
Bottle Diameter22 mm to 70 mm22 mm to 70 mm22 mm to 70 mm22 mm to 70 mm
Bottle Height50 mm to 120 mm50 mm to 120 mm50 mm to 120 mm50 mm to 120 mm
ROPP Cap Size20 mm to 40 mm20 mm to 40 mm20 mm to 40 mm20 mm to 40 mm
Cap FeedingVibrator / MechanicalVibrator / MechanicalVibrator / MechanicalVibrator / Mechanical
Power1.25 HP1.25 HP2.5 HP2.5 HP
Electrical440V, 3-phase, 50 Hz440V, 3-phase, 50 Hz440V, 3-phase, 50 Hz440V, 3-phase, 50 Hz
Control PanelSS 304 Pendant TypeSS 304 Pendant TypeSS 304 Pendant TypeSS 304 Pendant Type
Production Counter6-digit inbuilt6-digit inbuilt6-digit inbuilt6-digit inbuilt
Conveyor Height800 to 850 mm adjustable800 to 850 mm adjustable800 to 850 mm adjustable800 to 850 mm adjustable
Dimensions (mm)1830 x 800 x 14001830 x 800 x 14002130 x 915 x 15003050 x 1050 x 1500
Net Weight300 KG325 KG350 KG375 KG
Gross Weight525 KG550 KG575 KG600 KG
Warranty1 Year1 Year1 Year1 Year
CountryIndiaIndiaIndiaIndia

Material of Construction

ComponentMaterial
Main FrameSS Pipe
Top PlateMS with SS 304 cladding
Covers & DoorsSS 304
Conveyor PlatesSS 304
Feed Worm & Star WheelsNylon / Delrin
Conveyor ChainSS 304
Guide BracketsPolyamide + SS rod
Capping TurretMS with SS cladding
Capping HeadDie Cast Aluminum
Worm/Spindle GearsEN material
Cap ChuteSS Fabricated

Business & Trade Details

ParameterDetails
MOQ1 Machine
Monthly Capacity5 Units
Product CodeTGRCS- 60 /100 / 150 / 200
Delivery Time4 to 5 Weeks
PackagingISBM-15 Sea-worthy export packaging
SeaportMundra Port, Gujarat, India
Payment TermsT/T, L/C (International Trade)

Suitable for Industries

IndustryApplication
PharmaceuticalsROPP capping for syrups and tonics
Wine & DistilleriesCap sealing for wines, spirits, vodka
BeverageHigh-speed ROPP sealing for juice & soda
CosmeticsPerfume, toner & facial solution capping
AgrochemicalsCapping liquid pesticide/fertilizer bottles
NutraceuticalsSecure packaging of vitamin supplements

Target Market in South Africa

Technogen’s rotary ROPP cappers are widely adopted in South Africa’s major industrial hubs:

  • Johannesburg: Pharmaceutical and distillery operations

  • Cape Town: Wine bottling and beverage production

  • Durban: Agrochemical and nutraceutical bottling

  • Port Elizabeth: Food and beverage industries

  • Pretoria: Government and contract packaging applications


? Reach out to Technogen Enterprise today to enhance your production line with our premium-quality Multi-Head ROPP Capping Machines—designed for performance, precision, and reliability across South Africa.
