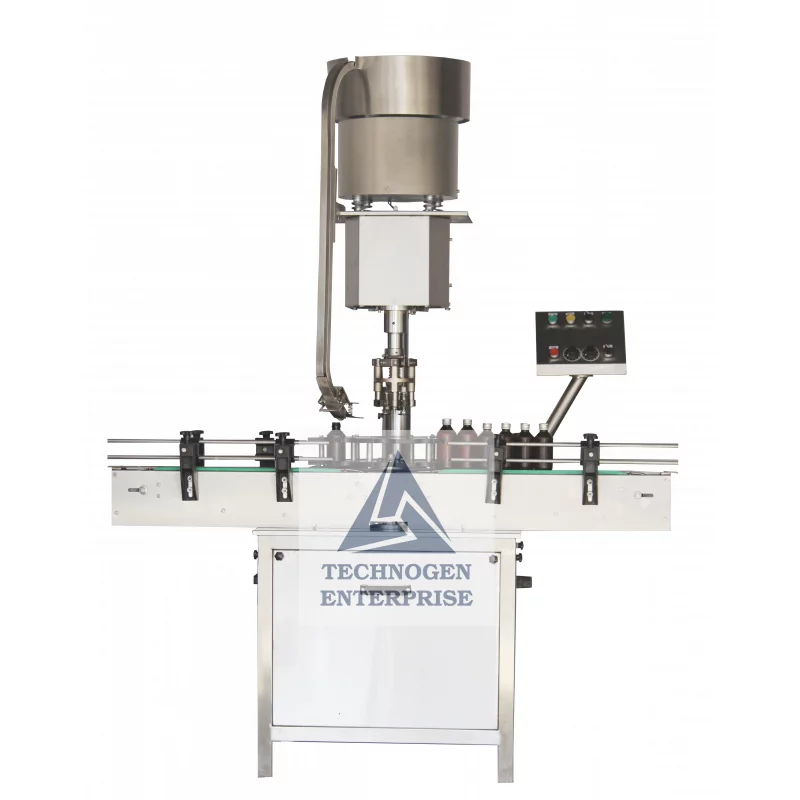

Automatic Single Head ROPP Capping Machine Details
Technogen Enterprise proudly presents its Automatic Single Head ROPP Capping Machine (Model: TGRCS-50), a robust and high-performance capper designed for pharmaceutical, distillery, wine, and beverage industries in South Africa.
With a remarkable production rate of up to 50 bottles per minute, this machine ensures smooth, precise, and secure application of roll-over pilfer-proof (ROPP) caps on a variety of glass, plastic, and PET bottles. Whether you're based in Johannesburg, Cape Town, Durban, Port Elizabeth, or Pretoria, this machine is engineered to support dynamic bottling operations across the country's key industrial hubs.
Salient Features
CGMP-compliant model with premium SS 304 matt finish
Single motor synchronization for conveyor, turret, and star wheels
No Bottle–No Cap mechanism for reduced wastage
Synchronized variable frequency drive for adjustable speeds
Safety clutches at star wheel to stop operation in case of bottle misplacement
Effortless changeover between various bottle/cap sizes
Energy-efficient and low-noise operation
6-digit production counter to monitor daily output
Accurate sealing pressure control to accommodate different ROPP caps
Machine Safety Features
No Bottle – No Cap System
Star wheel clutch disengagement for fallen bottle
Emergency stop button
Out-feed jam detection
Add-on Features
PLC & HMI interface for intuitive operation
Automatic up/down capping head system
Toughened glass/polycarbonate/acrylic safety cabinet with door interlocks
Technical Specification
| Parameter | Specification |
|---|---|
| Machine Name | Automatic Single Head ROPP Capping Machine |
| Model | TGRCS-50 |
| Direction | Left to Right |
| Automation Grade | Automatic |
| Capping Application | Glass, Plastic & PET bottles with ROPP caps |
| Type of Capping | Roll-over Pilfer-Proof (ROPP) Cap |
| Bottle Diameter | 22 mm to 75 mm |
| Bottle Height | 55 mm to 110 mm |
| ROPP Cap Sizes Supported | 22 mm, 25 mm, 28 mm (with change parts) |
| Capping Speed | Up to 50 Bottles Per Minute |
| Speed Control | Variable Frequency Drive (VFD) |
| No. of Capping Heads | 1 |
| Machine Motion | Indexing via Cam & Follower System |
| Power Consumption | 1 KW |
| Electrical Requirement | 440V, 3 Phase, 50 Hz, 4-wire system |
| Cap Feeding System | Vibrator feeder or mechanical orientator |
| Control Panel | SS 304 bottom pendant-mounted panel |
| Conveyor Height | Adjustable from 800 mm to 850 mm |
| Machine Dimensions (L x W x H) | 1830 mm x 750 mm x 1450 mm |
| Net Weight | 250 KG |
| Gross Weight | 450 KG |
| Change Parts Requirement | Required for different bottles and cap sizes |
| Noise Level | Below 70 dB |
? Additional Business Information
| Parameter | Details |
| Brand Name | Technogen Enterprise |
| Country of Origin | India |
| Production Capacity | 7 Machines / Month |
| Minimum Order Quantity | 1 Unit |
| Product Code | TGRCS-50 |
| Delivery Time | 4–5 weeks |
| Packaging Type | ISBM-15 compliant seaworthy packaging |
| Nearest Seaport | Mundra Port, Gujarat, India |
| Payment Modes | T/T, L/C (For international orders) |
Ideal for the Following Industries
| Industry | Application Use |
| Pharmaceuticals | ROPP sealing for syrup, tonic, and health supplement bottles |
| Distilleries | Capping for spirits, whisky, vodka, and liquor bottles |
| Wineries | Secure sealing of wine bottles |
| Beverage Manufacturers | ROPP cap sealing for juices, sodas, and carbonated drinks |
| Chemical & Agrochemical | ROPP sealing for chemical solutions and agrochemical liquid containers |
| Nutraceuticals & Health | Packaging dietary supplements and vitamin syrups in glass or plastic containers |
Serving All Major South African Hubs
Whether your production line is based in Johannesburg, Durban, Cape Town, Port Elizabeth, or Pretoria, Technogen Enterprise is equipped to meet your needs. Our machines are engineered to handle the demands of modern packaging lines across South Africa's vibrant industrial sectors.
Contact us today for pricing, customization, or a free consultation.
