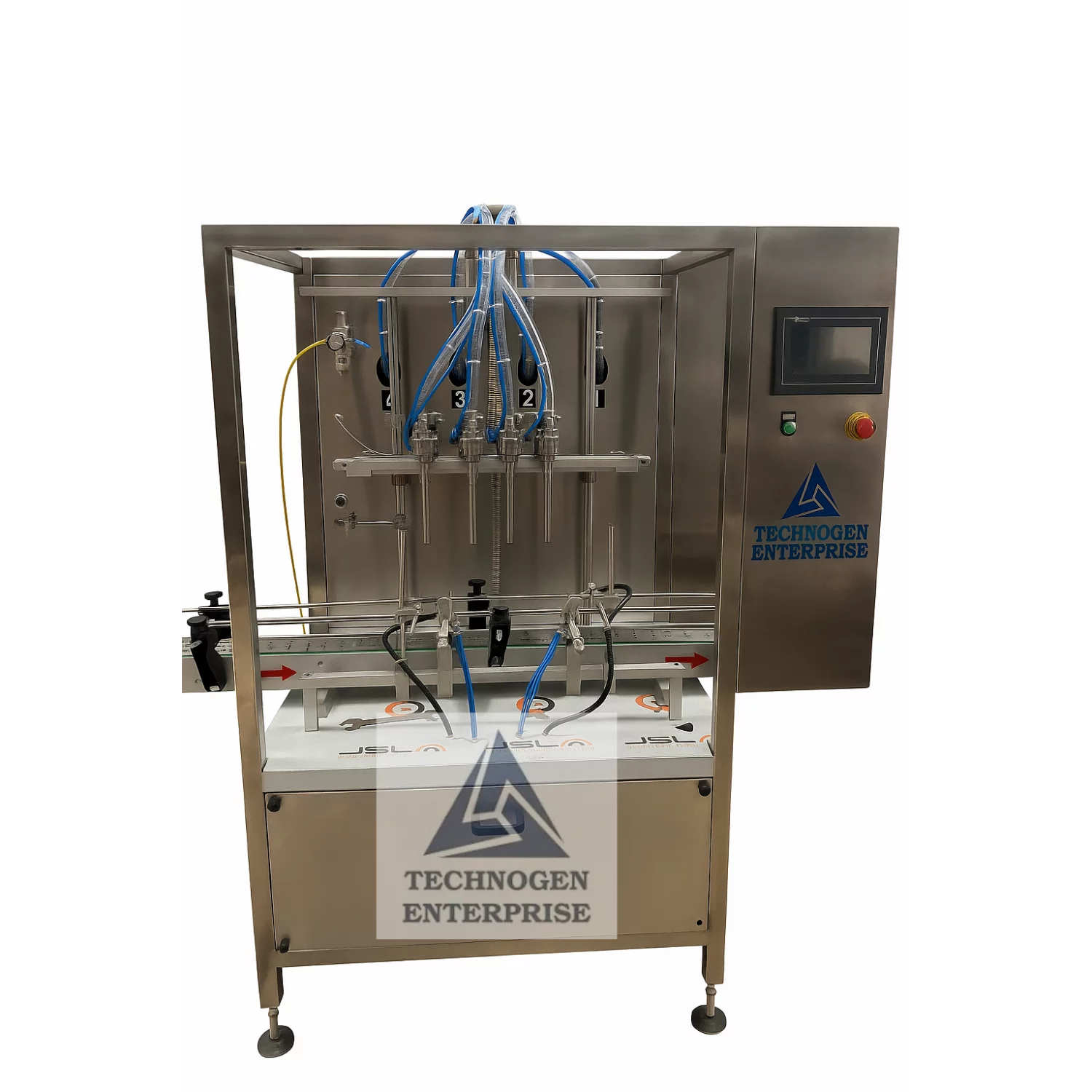

Automatic Servo Driven Gear Pump Bottle Liquid Filling Machine In South Africa
Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine Details
Industry-Leading Servo Driven Gear Pump Bottle Filling Machine for South Africa
Technogen Enterprise proudly presents its Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine, a premium-grade solution for high-precision, high-speed filling applications. Designed to handle a wide variety of viscous and foamy liquids, this machine is ideal for operations in Johannesburg, Durban, Cape Town, Port Elizabeth, Pretoria, and industrial hubs like Sasolburg, Richards Bay, and East London.
This advanced liquid filling system caters to a range of industries including:
Pharmaceuticals
Food & Beverage
Edible Oils
Cosmetics & Personal Care
Chemical Processing
Honey and Syrup Filling
Whether your business is filling honey jars in Pretoria or shampoo bottles in Cape Town, this machine guarantees unmatched performance, accuracy, and hygiene.
⚙️ Built for Performance, Designed for Precision
The machine integrates Servo Motor-Driven Gear Pump Technology, offering a modular design that is both scalable and highly customizable. Available in 4-head, 6-head, and 8-head configurations, this system allows you to increase production capacity without major design overhauls.
✅ Servo-Driven Pump Technology
Each filling head is powered by an individual servo motor, controlling the revolutions of the gear pump for precise liquid metering. This ensures ±2% filling accuracy even for viscous, foaming, or high-density liquids.
✅ Diving Nozzle System
Dive-in nozzles effectively eliminate spillage and foaming during the filling process—perfect for foamy liquids like detergent, sanitizers, or honey.
✅ Fill Volume Adjusted via HMI
Operators can set or adjust fill volume directly from the intuitive Human Machine Interface (HMI). No mechanical tools or downtime required for volume changes—ideal for recipe-based production lines.
? Key Features & Benefits
CGMP-Compliant Modular Design
Robust frame and body fabricated from AISI 304 stainless steel
Contact parts in AISI 316L, Silicone, or PTFE for hygienic operation
"No Bottle, No Fill" Technology
Prevents product loss, reduces clean-up time, and safeguards resources
Servo Motor & Gear Pump for Each Head
Unmatched metering accuracy and reliability
Tool-Less Adjustable Conveyor Guide Rails
Quick setup for various bottle shapes and sizes
Recipe Memory with Elite Fill Test
Ideal for multi-liquid production with repeatable settings
User-Friendly Touchscreen HMI & PLC Interface
Advanced yet simple control panel for production monitoring
Filling Range from 10 ml to 1000 ml
No component change needed, offering production versatility
Pneumatically Controlled Bottle Stoppers
Smooth bottle holding for seamless filling
Speed Control via VFD (Variable Frequency Drive)
Adjust the speed according to production demands
Drip-Free Performance
High-precision nozzles ensure clean and efficient operation
? Technical Specifications
odel | TGLF-50SG | TGLF-80SG | TGLF-100SG |
No of Filling Head | 4 HEAD | 6 HEAD | 8 head |
Output | 40 to 50 Bottle per minute for 100 ml Filling | 80 to 90 Bottle per minute for 100 ml Filling | 100 to 110 Bottle per minute for 100 ml Filling |
Power Consumption | 1.5 KW | 2 KW | 2.5 KW |
Machine operating Direction | Left to Right | ||
Filling technology | Servo Motor Based Metering | ||
Bottle holding | Though Starwheel or Punematic stopper | ||
Filling Accuracy | ±2 % depending upon the liquid properties | ||
Filling Range | 100 ml to 1000 ml | ||
Bottle Diameter | 16 mm to 100 mm | ||
Bottle Height | Up to 200 mm | ||
Power requirement | 440v 3 Phase 50Hz 4 Wire System | ||
Optional Add-On Features
Toughened Glass / Polycarbonate Safety Cabinet
With door interlock for enhanced operator safety
Turn Table Integration
For efficient in-feed and out-feed of bottles
21CFR Part-11 Compliance
Electronic signature and audit trail support for pharmaceutical validation
Recipe Memory & Batch Control
Multiple preset programs for different SKUs or liquids
Ideal for South African Manufacturing Units
Whether you're in Johannesburg’s industrial zone, Cape Town’s food packaging sector, or a Durban-based cosmetics line, our servo-based liquid filling machine is engineered to:
Reduce downtime and cleaning cycles
Improve filling accuracy
Eliminate product wastage
Increase production throughput
Offer flexibility for diverse product SKUs
Industries across South Africa’s major manufacturing belts will benefit from its rugged construction, modular expansion capabilities, and recipe-based repeatability.
Hygiene, Maintenance & Safety
Designed for easy wash-down and cleaning
Drip-free nozzles and spill control tray
Minimal manual intervention lowers contamination risks
Safety interlocks and covers to ensure workplace compliance
Why Choose Technogen Enterprise?
With years of experience in designing advanced, export-quality filling machines, Technogen Enterprise delivers solutions tailored for South African market needs. All our machines undergo strict quality inspections and offer:
Custom configuration based on bottle and product type
One-year warranty (excluding electrical parts)
Remote assistance and service guidance
Export support and documentation for global shipping
Contact Us
Ready to transform your liquid filling line? Connect with us for a tailored quote, technical datasheet, or live demo. Our machines are already serving satisfied clients in Johannesburg, Durban, Port Elizabeth, Bloemfontein, and Cape Town.
