Semi-Automatic Bottle Liquid Filling Machine For Precise Filling Solutions In South Africa

Reliable Semi-Automatic Liquid Filling for Small-Scale South African Manufacturers

Technogen Enterprise proudly introduces the Semi-Automatic Bottle Liquid Filling Machine, a cost-effective, GMP-compliant, and mechanically driven filling solution built to serve the precise needs of pharmaceutical, cosmetic, nutraceutical, food, and chemical sectors across South Africa.

This machine is ideal for businesses where production volume is modest, but quality, hygiene, and dosing accuracy are non-negotiable. From Cape Town to Johannesburg, Durban to Pretoria, this machine offers unmatched performance for local South African SMEs and contract manufacturers.

Applications of the Semi-Automatic Bottle Liquid Filling Machine

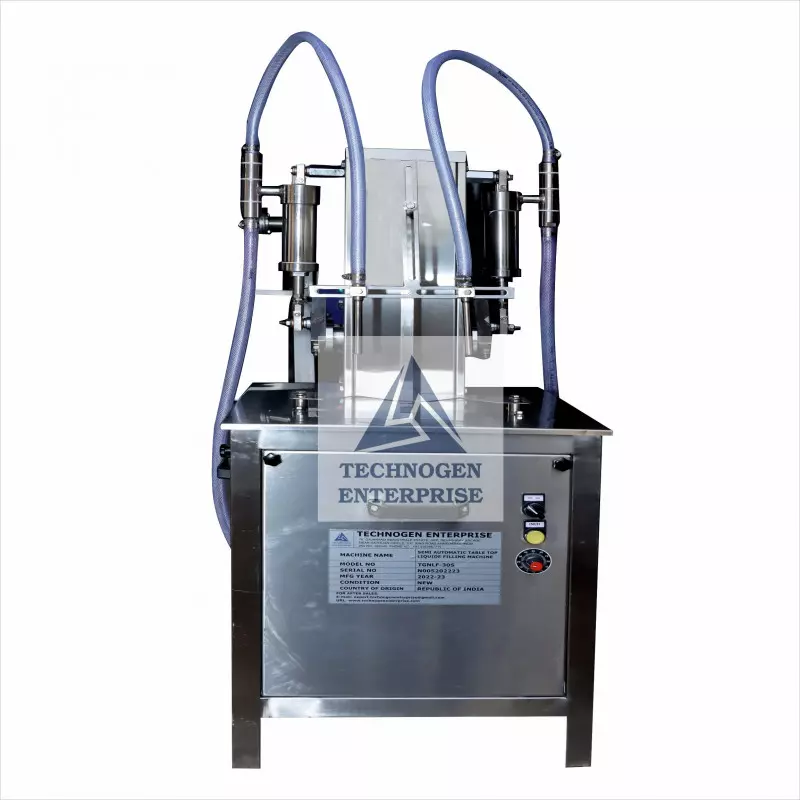

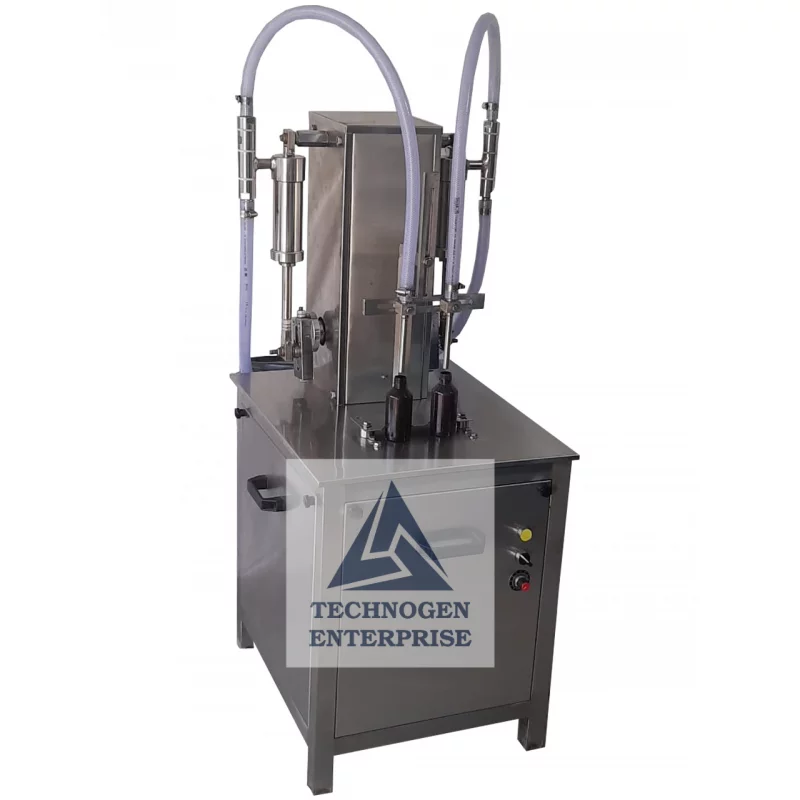

Our TGLF-20S model is a versatile and compact machine suited for accurately filling bottles of various shapes and sizes. Its wide application spectrum includes:

• Pharmaceutical Syrups and Solutions

• Ayurvedic and Herbal Oils

• Cosmetics like lotions and serums

• Beverage concentrates or flavourings

• Laboratory chemicals and solvents

• Home care liquids like disinfectants and cleaners

Key Features of the TGLF-20S Semi-Automatic Liquid Filling Machine

This semi-automatic bottle filler is designed for durability, hygiene, and ease of use. Here’s what sets it apart:

• ✅ Compact & CGMP Model
  Ideal for space-constrained production units and compliant with global manufacturing standards.

• ✅ Robust Construction
  Machine frame made from AISI 304 stainless steel, offering vibration-free and stable operation.

• ✅ All Contact Parts in AISI 316L
  Meets hygiene and corrosion-resistance standards for pharmaceutical and food-grade operations.

• ✅ Volumetric Filling Principle
  Ensures ±1% filling accuracy, even with variable liquid viscosities.

• ✅ Dual Filling Head
  Enables continuous bottle processing and boosts productivity—up to 20 bottles per minute, depending on operator skill and bottle type.

• ✅ Adjustable Nozzle Stroke & Height
  Guarantees gentle filling without splash or spillage, even for small neck bottles.

• ✅ Spring-Loaded Nozzle Holder
  Minimizes breakage risk, even when bottle positioning isn’t perfect.

• ✅ Anti-Drip Non-Return Valve Design
  Prevents dripping between fills, maintaining a clean platform and bottle exterior.

• ✅ Wide Filling Range
  Fills liquids from 5 ml to 1000 ml, with stroke assistance above 500 ml for precision dosing.

• ✅ Variable Speed Control
  Equipped with Variable Frequency Drive (VFD) for speed customization as per liquid viscosity and fill volume.

Working Process – Simple, Safe & Accurate

The TGLF-20S follows a straightforward operational procedure, ideal for operators of all skill levels:

1. Bottle Placement
   Operator manually places empty bottles below the nozzle heads.

2. Filling Cycle Initiation
   With foot switch or auto mode, the machine begins filling.

3. Nozzle Entry with Height Adjustment
   Adjustable nozzles dive into the bottles to prevent foaming/splashing.

4. Liquid Dispensing via Volumetric Piston
   Highly accurate piston-based dosing dispenses the programmed volume.

5. Exit and Ready for Next Cycle
   Filled bottles are manually removed and the next set is placed.

This manual feeding + automatic dosing combo allows for maximum control and precision with minimal training.

Technical Specifications – TGLF-20S

Customization Options

Need a configuration specific to your line? We offer:

• Optional Bottle Clamping System

• Different Syringe Sizes for Fill Volume Adjustments

• Tri-Clamp Connections for Easy Cleaning

• Viscous Liquid Adaptations with Heated Jacket (on request)

Advantages for South African Industries

✅ Cost-Efficient Automation

A perfect upgrade for small-scale or emerging manufacturers who need precision without full automation costs.

✅ Quick Changeover

Switch between bottle types or fill volumes with minimal downtime—ideal for batch-wise or seasonal production.

✅ GMP Compliant

Built as per current Good Manufacturing Practices, making it export-ready and compliant with South African Health Products Regulatory Authority (SAHPRA) standards.

✅ Compact Design

Fits perfectly in small factories, labs, and mobile production environments without sacrificing capacity.

Ideal for the Following Sectors in South Africa

Technogen’s TGLF-20S model has earned the trust of operators and production managers in:

• Pharmaceutical syrup plants

• Cosmetic manufacturers (shampoo, lotions)

• Herbal & ayurvedic oil producers

• Food and condiment processors

• Chemical and diagnostic reagent companies

After-Sales Support Across South Africa

Our dedicated export team provides complete support across South Africa, including:

• Installation & commissioning guidance (virtual or in-person)

• Remote operational training & troubleshooting

• Readily available spares with express shipping

• SOP documentation & user manuals

Why Technogen Enterprise?

With over a decade of engineering experience and a global clientele, Technogen Enterprise ensures:

• Premium quality with competitive pricing

• Export readiness with CE-certified components

• Reliable logistics

• Customized machines for unique production lines

• Long machine life and easy maintenance

Order Now – Precision in Every Drop

If you’re seeking a reliable, durable, and accurate liquid filling solution for small to medium batch production, the TGLF-20S Semi-Automatic Bottle Liquid Filling Machine is your perfect match.

From Johannesburg’s pharmaceutical units to Cape Town’s cosmetic labs, our machines are enabling efficient, scalable, and compliant production.
